KCR7/560

项目Item

参数Parameters

项目Item

参数Parameters

定位截割高(m)

Positioning cutting height (m)

4.2—6.57

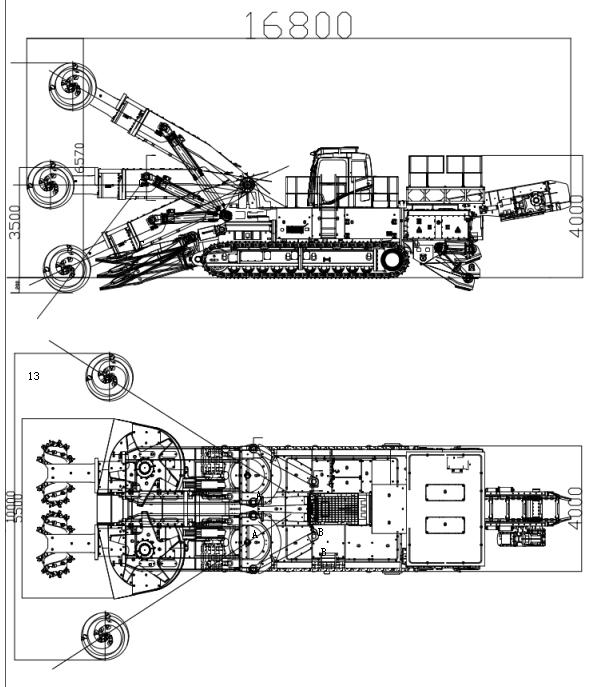

外形尺寸Overall dimension

长(m)

Length

16.8

Positioning Cutting Width (m)

定位截割宽(m)

Standard 5.5m blade

标配5 .5m铲板

6—10

Width

宽(m)

铲板宽:5.5

Shovel width: 5.5M

爬坡能力Gradeability

±15°

High (m)

高(m)

1.机身高:4 2.截割头水平放置最高点3.5

Fuselage height: 4 The highest point where the cutting head is placed horizontally3.5

可/经济截割岩石单向抗压强度Compressive strength of rock that can be cut/economically cut

≤70MPa

整机重量Total Weight

168t

掘进机适合巷道性质The roadheader is suitable for the nature of the roadway

岩巷掘进Rock tunneling

供电电压Supply voltage

1140V

卧底深度Undercover depth

150mm

油泵电机功率Oil pump motor power

200kW

截割电机功率Cutting motor power

2×280/200kW

额定输出功率

Rated output power

757kW (excluding the second)

截割头转速/伸缩量Cutting head speed/stretch

36.7rpm/Does not stretch

供水的PH值PH of water supplyvalue

6-8

Chloride ion content

≤200mg/l

Sulfate ion content

≤400mg/l

装载形式Loading form

Five-tooth star wheel

要求井下供水压Request downholeWater supply pressure

3-8MPa

运输机形式Transporter form

Double side chain scraper type

22×86-C

供水量Water supply

≥120/30L/min

运输机链速Conveyor chain speed

62m/min

机身地隙Fuselage clearance

240mm

最大不可拆卸件尺寸(长×宽×高)

Maximum not detachable parts size

(length×

widthx high)

本体架Body frame

2.5×3.4×1.4m

最大不可拆卸件重量(本体架)

Maximum weight of non-detachable parts (body frame)

9800kg

一运前溜槽A front chute

6.5×0.98×0.8m

后支承架Rear support frame

1.65×2.56×1.34m

行走速度Walking speed

0~5.6m/min

履带宽度Track width

850mm

星轮转速Star wheel speed

33rpm

三联液压泵Triple hydraulic pumps

260+260+145ml/r

装载能力Loading capacity

5 m 3 /min

对地压强Ground pressure

0.15MPa
