EBZ260

主要技术参数 Main Technical Specification

项目 Items

参数 Parameter

整机质量 Overall weight

85t

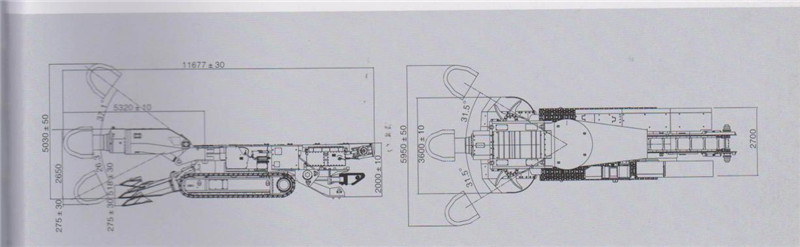

外形尺寸Overall

dimension

长 length

11677mm

宽 Width

铲板 Shovel plate

3600/3200/3000/2800mm

机身 Main body

2700mm

高 Height

截制头水平放置最高点 Cutting head is laid horizontally on the highest point

2650mm

机身 Main body

2000mm

卧底深度 Undercut depth

275mm

地隙 Ground clearance of machine

260mm

定位切割范围Range of

positioning cutting

高度 Height

5030mm

宽度 Width

5950mm

面积 Area

30m2

龙门高度mm Gantry height (mm)

400mm

爬坡能力 Grade ability

± 18°

行走速度 Travelling speed

7m/min

接地比压 Grounding pressure

0.165MPa

总功率 Gross power

410.5kW

切割电机功率 Power of Cutting motor

260/200kW

泵站电机功率 Power of electric pump motor

132kW

供电电压 Input voltage

AC1140V

供电频率 Input frequency

50Hz

切割头转速 Rotation speed of cutting head

54/27r/min

装载能力 Loading capacity

星轮式 Star wheel type/4.3 m³/min

履带宽度 Crawler width

650mm

履带外宽 Out.width of crawlers

2700mm

涨紧形式 Tensioning style

油缸涨紧、卡板锁紧 Cylinder tensioning and snap-gauge locking

喷雾水压 Water pressure of spraying

外喷雾水压 Water pressure of outside spraying≥4MPa

内喷雾水压 Water pressure of inside spraying≥2MPa

最大不可拆卸件尺寸 Max.non-removable parts size

3.755×1.5×1.47m

最大不可拆卸件质量 Max. non-removable parts mass

8700kg
