EBZ230

主要技术参数 Main Technical Specification

项目Items

参数 Parameter

整机质量 Overall weight

80t

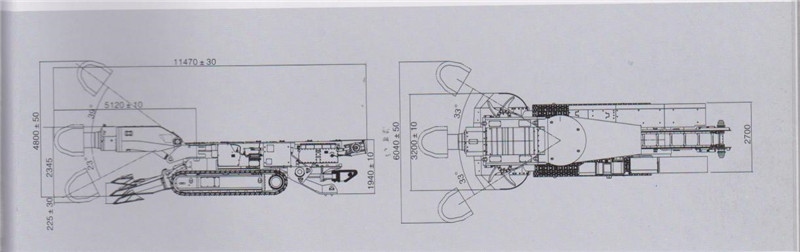

外形尺寸Overall

dimension

长 length

11470mm

宽 Width

铲板 Shovel plate

3200/3600/3000/2800mm

机身 Main body

2700mm

高 Height

截割头水平放置最高点 Cutting head is laid horizontally on the highest point

2345mm

机身 Main body

1940mm

卧底深度 Undercut depth

225mm

地隙 Ground clearance of machine

220mm

定位切割范围Range of

positioning cutting

高度 Height

4800mm

宽度 Width

6040mm

面积 Area

29m2

龙门高度mm Gantry height (mm)

400mm

爬坡能力 Grade ability

± 18°

行走速度 Travelling speed

7m/min

接地比压 Grounding pressure

0.15MPa

总功率 Gross power

377kW

切割电机功率 Power of Cutting motor

230/150kW

泵站电机功率 Power of electric pump motor

132kW

供电电压 Input voltage

AC1140V

供电频率 Input frequency

50Hz

切割头转速 Rotation speed of cutting head

46/23r/min

装载能力 Loading

星轮式 Star wheel type/4 .3 m³/min

履带宽度 Crawler width

650mm

履带外宽 Out.width of crawlers

2700mm

涨紧形式 Tensioning style

油缸涨紧、卡板锁紧 Cylinder tensioning and snap-gauge locking

喷雾水压 Water pressure of spraying

外喷雾水压 Water pressure of outside spraying≥4MPa

内喷雾水压 Water pressure of inside spraying≥2MPa

最大不可拆卸件尺寸 Max.non-removable parts size

3.68×1.39×1.48m

最大不可拆卸件质量 Max . non- removable parts mass

8500kg
