EBZ200

主要技术参数 Main Technical Specification

项目 Items

参数 Parameter

整机质量 Overall weight

58t

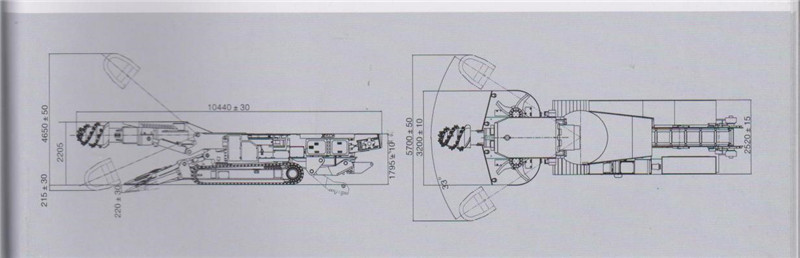

外形尺寸Overall

dimension

长 length

10440mm

宽 Width

铲板 Shovel plate

3200/2800mm

机身 Main body

2520mm

高Height

截割头水平放置最高点 Cuting head is laid hoizontially on the highest point

2205mm

机身 Main body

1795mm

卧底深度(伸缩/不伸缩) Undercut depth(telescopic/contracted)

440/215mm

地隙 Ground clearance of machine

250mm

定位切割范围

Range

of

positioning cutting

高度(伸缩/不伸缩) Height(telescopic/contracted)

5030/4650mm

宽度(伸缩/不伸缩) Width(telescopic/contacted)

6260/5700mm

面积(伸缩/不伸缩) Area(telescopic/contracted)

31.5/26.4m2

龙门高度mm gantry height (mm)

400mm

爬坡能力 Grade ability

± 18°

行走速度 Travelling speed

7m/min

接地地压 Grounding pressure

0.132MPa

总功率 Gross power

325kW

切割电机功率 Power of Cutting motor

200/110kW

泵站电机功率 Power of electric pump motor

110kW

供电电压 Input voltage

AC1140V

供电频率 Input frequency

50Hz

切割头转速 Rotation speed of cutting head

46/23r/min

装载能力 Loading capacity

星轮式 Star wheel type/4.2 m³/min

履带宽度 Crawler width

600mm

履带外宽 Out.width of crawlers

2520mm

涨紧形式 Tensioning style

油缸涨紧、卡板锁紧 Cylinder tensioning and snap-gauge locking

喷雾水压 Water pressure of spraying

外喷雾水压 Water pressure ofouside spraying≥4MPa

内喷雾水压 Water pressure ofinside sprayjng≥2MPa

最大不可拆卸件尺寸 Max.non-removable parts size

3.125×1.39×1.41m

最大不可拆卸件质量 Max.non-removable parts mass

5900kg
