EBZ160

主要技术参数 Main Technical Specification

项目Items

参数 Parameter

整机质量 Overall weight

47t

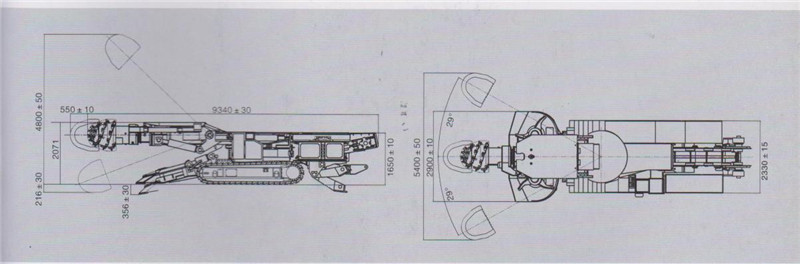

外形尺寸Overall

dimension

长 length

9340mm

宽Width

铲板 Shovel plate

2900mm/2500mm

机身 Main body

2330mm

高Height

截割头水平放置最高点 Cutting head is laid horizontally on the highest point

2071mm

机身 Main body

1650mm

卧底深度(伸缩/不伸缩) Undercut depth(telescopic/contracted)

216/180mm

地隙 Ground clearance of machine

250mm

定位切割范围Range of

positoningcutting

高度(伸缩/不伸缩) Height (telescopic/contracted)

4800/4500mm

宽度(伸缩/不伸缩) Width(telescopic/contracted)

5400/5000mm

面积(伸缩/不伸缩) Area (telescopic/contacted)

26/25m2

龙门高度mm Gantry height (mm)

400mm

爬坡能力 Grade ability

± 18°

行走速度 Travelling speed

6.5m/min

接地比压 Grounding pressure

0.148MPa

总功率 Gross power

265kW

切割电机功率 Power of Cutting motor

160/80kW

泵站电机功率 Power of electric pump motor

90kW

供电电压 Input voltage

AC1140/660V

供电频率 Input frequency

50Hz

切割头转速 Rotation speed of cutting head

48/24r/min

装载能力 Loading capacity

星轮式Star wheel type/4.32 m3/min

履带宽度 Crawler width

520mm

履带外宽 Out.width of crawlers

2330mm

涨紧形式 Tensioning style

油缸涨紧、卡板锁紧 Cylinder tensioning and snap-gauge locking

喷雾水压 Water pressure of spraying

外喷雾水压 Water pressure of outside spraying≥4MPa

内喷雾水压 Water pressure of inside spraying≥2MPa

最大不可拆卸件尺寸 Max. non-removable parts size

3.38×1.20×1.52m

最大不可拆卸件质量 Max.non-removable parts mass

5500kg
